Product Features:
The original industrial DID LCD splicing screen has high performance and a service life of over 70000 hours, meeting the requirement of 24/7 uninterrupted operation;
High brightness, high color gamut, and high contrast ensure perfect display effect;
178 ° wide viewing angle design for all-round viewing;
Adopting a direct type LED backlight system, low power consumption, high environmental friendliness, and uniform color;
Intelligent management ensures long-term operation;
16.7M color, realistically reproducing every detail of the image;
Adopting the latest 3D digital filtering and 3D digital noise reduction technology to better eliminate bright and mixed color interference;
6ms fast response time, truly no trailing on the screen;
Simple modular design, flexible product installation and splicing;
Special back cover design, easy to install and maintain; All metal casing, anti-static, anti magnetic field, and anti-interference;
Multi level menu display function, more convenient to operate; Rich built-in signal interfaces to meet various needs;
24-Hour Hour Hotline:
136-9217-3135产品规格参数表：
Product Specification and Parameter Table：
液晶拼接单元尺寸 LCD splicing unit size | 49寸液晶拼接单元 49 inch LCD splicing unit | |
面 板 参 数 Panel Parameters | 面板类型 Panel Type | 49”DID原装A规 49 "DID original A standard |
显示比例 Display Ratio | 16：9
| |
背光类型 Backlight Type | LED | |
分 辨 率 Resolution | 1920*1080 | |
显示色彩 Resolution | 16.7M(8bit) | |
亮度 Brightness | 500cd/m2 | |
对比度 Contrast Ratio | 4000:1 | |
可视角度 Viewing Angle | 178° | |
响应时间 Response Time | ≤6ms | |
使用寿命 Service Life | 70000小时 70000 Hours | |
物理拼缝 Physical Seam | 1.7mm | |
功能 Functions | 彩色制式 Color System | PAL/NTSC/SECAM |
菜单语言 Menu Language | 简体中文、繁体中文、英文多国语言 Simplified Chinese, Traditional Chinese, English and Multi-language | |
操作方式 Operation Method | 遥控器 Remote Control | |

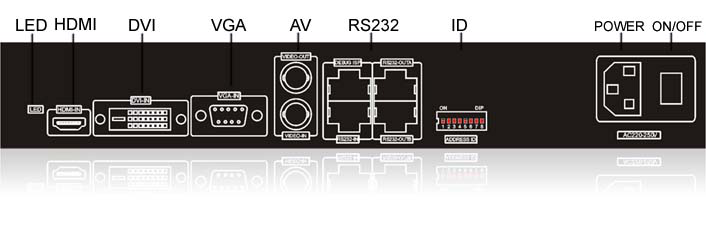

接口 InputOutputInterface | VGA输入 VGA Input | 1 |
DVI输入 DVI Input | 1 | |
HDMI输入 HDMI Input | 1 | |
复合视频输入(AV) Composite Video Input (AV) | 1(BNC*1) | |
复合视频输出（AV） Composite Video Output (AV) | 1(BNC*1) | |
控制信号输入 Control Signal Input | RS232*2（RJ45-8接口） | |
控制信号环出 Control Signal Loop Output | RS232*2（RJ45-8接口） | |
电源 Power Supply | 电源输入 Power Input | AC100-240V,50 /60HZ |
电源功耗 Power Consumption | ≤140W | |
工作环境 Working Environment | 工作温度 Working Temperature | 0℃—50℃ |
存储温度 Storage Temperature | -20℃-60℃ | |
工作/存储湿度 Working / Storage Humidity | 20%-80% | |
安装方式 Installation Method | 机柜、壁挂、支架、积木、嵌入、移动式等 Cabinet, Wall Mount, Bracket, Building Block, Embedded, Mobile, etc. | |
规格 Specification | 产品尺寸 Product Size | 1078*608mm |
外壳材质 Shell Material | 金属 Metal | |
净重 Net Weight | 24KG | |
注：产品图片及参数仅供参考，以具体实物为准！
Note: Product pictures and parameters are for reference only; please refer to the actual product!
