46 inch 3.5mm LCD splicing unit

Original industrial DID LCD splicing screen, high performance, service life of more than 60,000 hours, meeting 7 * 24 hours of uninterrupted work;

High brightness, high color gamut, and high contrast to ensure perfect display effect;

178 ° wide viewing angle design, full viewing;

Using direct-type LED backlight system, low power consumption, high environmental protection, uniform color;

Intelligent management to ensure long-term operation;


24-Hour Hour Hotline:

136-9217-3135
Product details:


PANEL

Panel type

Samsung 46” Original Industrial DID LCD Panel

Display Area

1018.08*572.67mm(H*V)

Pixel Pitch

0.53025mm*0.53025mm(H*V)

Show ratio

16: 9

Backlight

LED

Resolution

1920(RGB)×1080(FHD)

Color

16.7M (8bit)

Brightness

500cd/m2

Contrast ratio

3000:1

View Angle

178°(H) / 178°(V)

Response time

≤6ms

Life Expectancy

60000 Hours

Physical Bezel

3.5mm

Function

S-System

PAL/NTSC/SECAM

Menu language

Chinese, English and others

Mode of operation

The remote control

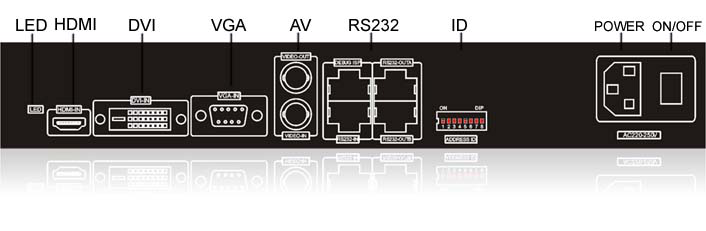

IN/OUT



SIGNAL



VGA

1

DVI

1

HDMI

1

Composite-video in

1(BNC×1)

Composite-video out

1(BNC×1)

Control signal input

RS232*2(RJ45-8 interface)

Control signal output

RS232*2(RJ45-8 interface)

POWER

Voltage

AC100-240V, 50 / 60HZ

Power consumption

140W



T / H

Work temperature

0℃~50℃

Storage temperature

-20℃~60℃

Humidness

20%~80%

INSTALL

Cabinet/Rack

Custom

Accessories

Custom

Installation

Cabinet/Wall/Rack/Brick, Embedded, Mobile ect.

Others

Dimension

1021.98*576.58*124.5mm

Appearance color

Black

Casing material

Metal

Net weight

21KG
